SFP+SR light engine

The SFP + Sr optical engine is pluggable and easy to carry. At the same time, it has a long transmission distance, fast transmission speed, good interface compatibility, wide operating temperature range, and is manufactured in strict accordance with the specifications and standards. The power consumption is very low. It is generally used in switches and routers or other devices used in the optical engine.

Features

1. Low power less than 0.35w

2. Transmission distance up to 300 meters（OM3）

3. 850nm VCSEL laser, PIN photodetector

4. 3.3V Voltage

5. Fine EMI property

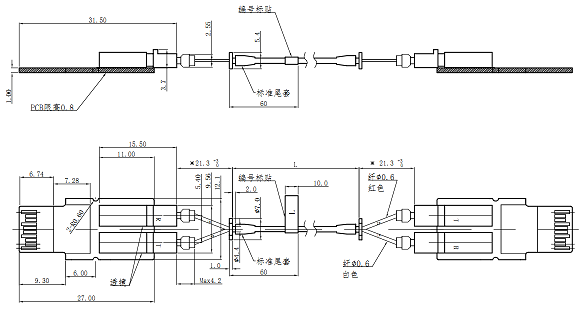

Outline Structure

Performance Criteria

Transmission rate(Gbps)	10.3125	25.78125
Output optical power(dBm)	≥-6.5	≥-3
Extinction ratio(dB)	≥3	≥3
Receiving sensitivity(dBm)	≤-10	≤-5.2
Wavelength(nm)	850	850
Voltage(V)	DC +3.3	DC +3.3
Operating temperature(℃)	0℃～+70℃	0℃～+70℃
