HDMI 2.0 all optical active fiber optic engine

HDMI 2.0 all-optical active optical cable optical engine can also be plug and play. It is easy to carry and use. It has high resolution, fast transmission speed, long transmission distance, and no distortion in the transmission process. It can also support a variety of signal transmission methods. It is generally used in home cinemas, video conference systems, personal computers and laptops, set-top boxes, stadiums and outdoor areas Information display of the notice panel.

Features

1. Support HDMI2.0,Transmission speed 18Gbps

2. No compression and distortion of transmitted image signal

3. Support HDCP2.2，CEC，DDC，ARC signal transmission

4. Support resolution up to 4K@60Hz@4:4:4

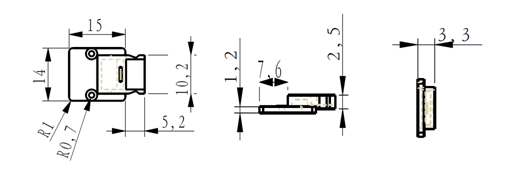

Outline Structure

Performance Criteria

Parameters	Max	Typ	Max	Unit	Note
Transmission rate		18	48	GHz	data bandwidth
Operating temperature	-20	25	50	℃
Energy consumption		0.6	1	W
Voltage	4.5	5	5.5	V
Current		70	120	mA	RX
		60	100	mA	TX
Support refresh ratio	Up to 120Hz			Hz	120Hz support 1080P or 2160P 4:2:0
Support resolving power	Up to 4K x 2K			px	4K@2K 4:4:4@60Hz
Support 3D	YES
Support HDCP	HDCP1.4/HDCP2.2
Wavelength	850			nm
Execution error rate	1.00E-12
VCSEL power output	Class 1				EN 60825-1 2007 EN 60825-2 A2 2010
Internet	YES
Audio backhaul	YES
CES	YES
Hot plugged	YES
