HDMI2.0 photoelectric hybrid active optical cable

HDMI2.0 photoelectric hybrid active optical cable can be plug and play, easy to use, with high resolution, fast transmission speed, long transmission distance, and no distortion in the transmission process, it can also support a variety of signal transmission, with RFI impedance and other advantages, generally used in home theater, medical equipment, industrial automation, international large-scale exhibition, outdoor advertising panel information and other equipment or fields Institute.

Features

1. Support HDMI 2.0 and HDCP2.2

2. Support DDC CEC HPD ARC HEC signal transmission

3. No compression of transmitted image signal, no distortion of image quality

4. OM3 multimode fiber, 18Gps bandwidth transmission up to 100m distance

5. Support all optical conversion up to 4kx2kx60hz

6. EMI/RFI impedance

7. Plug and play without external power supply or signal amplifier

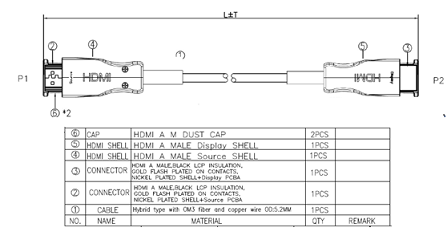

Product Diagram

Performance Criteria

Parameters	Max	Typ	Max	Unit	Note
Transmission rate		18	48	GHz	data bandwidth
Operating temperature	-20	25	50	℃
Energy consumption		0.6	1	W
Voltage	4.5	5	5.5	V
Support refresh ratio	Up to 120Hz			Hz	120Hz support 1080P or 2160P 4:2:0
Support resolving power	Up to 4K x 2K			px	4K@2K 4:4:4@60Hz
Support 3D	YES
Support HDCP	HDCP1.4/HDCP2.2
Wavelength	850			nm
Execution error rate	1.00E-12
VCSEL power output	Class 1				EN 60825-1 2007 EN 60825-2 A2 2010
Internet	YES
Audio backhaul	YES
CEC	YES
Hot plugged	YES
